Fusion Twin Table Series

Fusion Twin Table Series CNC Machining Center

The Fusion Twin Table Series of CNC routers from Komo Machine, Inc. has been developed specifically for the customer who requires a machine with the flexibility of two tables and one or two spindles. These machines feature a moving table configuration and spindle-mounted tool changers.

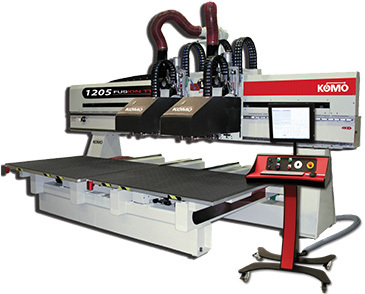

Fusion Twin Table Series CNC Machining Center
Download More Information

Features

  • Four-pole, 18HP (13.2kw), 24,000 RPM, HSK 63F, fan-cooled spindle (standard; other spindle options available)
  • 15 position automatic tool changer with aggregate capability (optional additional 15 position tool changer available)
  • Air blast for optimal dust/chip evacuation and cooling of the cutting tool
  • Advanced Fanuc HVI servo system tuned for optimum acceleration and deceleration
  • Tool touch-off device with automatic tool data uploading
  • Fanuc Panel i control with integrated PC
  • Universal grid fixture table available in composite (standard) or aluminum (option)
  • Pressurized automatic centralized lubrication system
  • Komo Production Manager with Intelligent Spoil Board Management
  • 17″ touch screen display

Construction

  • FEA “Finite Element Analysis” engineered structure
  • Heavy-duty steel fabrication
  • Closed-loop counterbalance system minimizes plant air consumption

Want to learn more about the Fusion Twin Table?

    Fusion Twin Table Technical Data
    Spindle

    Quantity…..One (1) standard, two (2) optional

    Type…..18HP (13.2kw), four-pole, fan cooled (standard)

    RPM…..Up to 24,000, fully programmable

    Taper…..HSK 63F

    Tables
    1205…..Two (2) 72″ (1829mm) x 60″ (1524mm)
    Four (4) 1″ (25mm) part location pins per table
    Aggregate-Capable Tool Changer

    Max Quantity…15 tools (per spindle)

    Max Diameter……3.25″ (82mm) positions full; 6.5″ (165mm) adjacent positions empty

    Max Weight….12 lbs each / 96 lbs total (5.4kg / 43.5kg)

    Max Length…..5″ (127mm)

    Feed Rate/TraverseX Axis…..3150ipm (80mpm)

    Y Axis…..2300ipm (58.5mpm)

    Z Axis…..900ipm (22.7mpm)

    Acc/Dec…..83 in/sec²

    Axis Travels1205…..173″ (4394mm) x 76″ (1930mm) x 11″ (279mm)
    Control SystemFanuc Panel i…..With integrated PC and 17″ touch screen display
    Dust Collection
    Interface…..9″ (229mm) dia (2 spindles) recommended volume 900 cfm per spindle
    Vacuum SystemWith low vacuum sensing interface
    Options
    Tooling Package…..Tool holders, collets, bench top tool changing block, wrench
    Vacuum Pumps…..Started via pushbutton on main operator panel, with remote start relay
    Boring Blocks…..Available in a variety of configurations, from nine to 25 spindles
    Part Labeling…..Print labels directly onto parts prior to machining
    Safety Equipment…..Laser scanners, light curtains, pressure mats
    Configuration…..Single 144″ (3658mm) x 60″ (1524mm) table or 48″ and 96″ x 60″ tables
    Dual Screen…..Additional 17″ screen attached to the control allows for flexibility
    Mist Coolant…..For cutting non-ferrous metals
    C Axis…..Allows use of aggregate tooling, for four axis machining capability
    Table…..Aluminum universal grid, integrated pop-up roller balls
    Spindles.….Multiple spindles, programmable head spacing and/or shroud height, head locks
