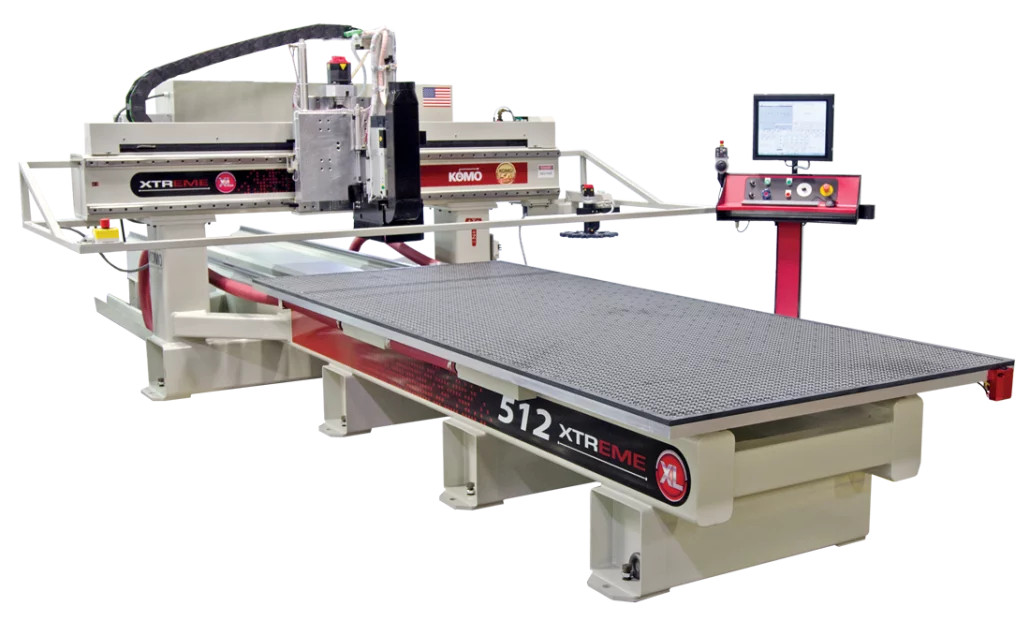

Xtreme XL CNC Machine

The Xtreme XL Series of CNC routers from Komo Machine, Inc. has been developed specifically for the cost-conscious yet demanding customer who expects the utmost in technical quality and reliability. These machines feature a moving table configuration and a side-mounted tool changer. From high-end cabinetry to aerospace components the KOMO Xtreme series of CNC router delivers the performance and efficiency you need to fulfill orders without fail.

DOWNLOAD THE XTREME XL DATA SHEET

Four-pole, 18HP (13.2kw), 24,000 RPM, HSK 63F, fan-cooled spindle
12 position automatic tool changer with aggregate capability
Air blast for optimal dust/chip evacuation and cooling of the cutting tool
Advanced Fanuc HVI servo system tuned for optimum acceleration and deceleration
Tool touch-off device with automatic tool data uploading
Latest Fanuc controls with HVI servo system & integrated PC
Universal grid fixture table available in composite (standard) or aluminum (option)
Pressurized automatic centralized lubrication system
Komo Production Manager with Intelligent Spoil Board Management
17″ touch screen display

Xtreme XL Series Technical Data
Spindle	Quantity…..1 Type…..18HP (13.2kw), four-pole, fan cooled RPM…..Up to 24,000, fully programmable Taper…..HSK 63F
Tables	508…..60″ x 96″ (1524mm x 2438mm) 510…..60″ x 120″ (1524mm x 3048mm) 512…..60″ x 144″ (1524mm x 3658mm) Four (4) 1″ (25mm) part location pins
Aggregate-Capable Tool Changer	Max Quantity…12 tools standard. Max 24 tools with a second optional 12 station tool changer. Max Diameter……3.25″ (82mm) positions full; 6.5″ (165mm) adjacent positions empty Max Weight….12 lbs each / 80 lbs (total) (5.4kg / 36.4kg) Max Length…..5″ (127mm)
Feed Rate/Traverse	X Axis…..3150ipm (80mpm) Y Axis…..2300ipm (58.5mpm) Z Axis…..1200ipm (30.5mpm) Acc/Dec…..150 in/sec²
Axis Travels	508…..104″ (2642mm) x 84″ (2134mm) x 10″ (254mm) 510…..134″ (3404mm) x 84″ (2134mm) x 10″ (254mm) 512…..158″ (4013mm) x 84″ (2134mm) x 10″ (254mm)
Control System	Fanuc Controls with integrated PC and 17″ touch screen display
Dust Collection	Interface…..6″ (152mm) diameter (recommended volume 900 cfm)
Vacuum System	With low vacuum sensing interface
Options	Tooling Package - Tool holders, collets, bench top tool changing block, wrench Vacuum Pumps - Started via pushbutton on main operator panel, with remote start relay Boring Blocks - Available in a variety of configurations, from nine to 25 spindles Safety Equipment - Laser scanners, light curtains, pressure mats Material Handling - Automatic material handling system, out feed conveyor, material handling tables Dual Screen - Additional 17″ screen attached to the control allows for flexibility Mist Coolant - For cutting non-ferrous metals Pathfinder System - Part registration system adjusts placement for precision cutting Real Time Tool View - Industrial LED camera mounted under the spindle. C Axis - Allows use of aggregate tooling, for four axis machining capability Table - Aluminum universal grid, integrated pop-up roller balls
