Xtreme 5-Axis Twin Table CNC Machine

Xtreme 5 Axis TT

The Xtreme 5 Axis Series of CNC machining centers from Komo Machine has been developed specifically for the customer who requires more machining flexibility and more Z travel than an Xtreme XL. These machines feature a moving table configuration and 24″ of Z travel.

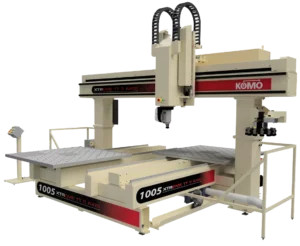

The KOMO Xtreme 1005 5-axis twin table machine

DOWNLOAD THE XTREME 5-AXIS TT DATA SHEET

Features

Four-pole, 11.7HP (8.7kw), 20,000 RPM, HSK 63F, liquid-cooled spindle
12 position automatic tool changer
Advanced Fanuc HVI servo system tuned for optimum acceleration and deceleration
Latest Fanuc controls with integrated PC
Universal grid fixture table available in composite (standard) or aluminum (option)
Pressurized automatic centralized lubrication system
Komo Production Manager
17″ touch screen display

Construction

Xtreme 5 Axis Technical Data
Spindle	Quantity…..One (1) Type…..11.7HP (8.7kw), four-pole, liquid cooled RPM…..Up to 20,000, fully programmable Taper…..HSK 63F
Tables	1005…..(2) 60” x 60” (1524mm x 1524mm) 1006…..(2) 60” x 72” (1524mm x 1829mm) 1008…..(2) 60” x 84” (1524mm x 2134mm)
Tool Changer	Max Quantity…12 tools standard. Max 24 tools with a second optional 12 station tool changer Max Diameter……3.25″ (82mm) positions full; 6.5″ (165mm) adjacent positions empty Max Weight….12 lbs each / 80 lbs total (5.4kg / 36.4kg) Max Length…..5″ (127mm)
Feed Rate/Traverse	X Axis 2300ipm (58.5mpm) Y & V Axes 2300ipm (58.5mpm) Z Axes 1200ipm (30.5mpm) Acc/Dec 130 in/sec² A & C Axes 74.4°/sec
Axis Travels	1005…..156” (3962mm) x 77” (1956mm) x 24” (610mm) 1008…..156” (3962mm) x 118” (2997mm) x 24” (610mm)
Control System	Fanuc controls with integrated PC and 17″ touch screen display
Options	Tooling Package - Tool holders, collets, bench top tool changing block, wrench Vacuum Pumps - Started via pushbutton on main operator panel, with remote start relay Boring Blocks - Available in a variety of configurations, from nine to 25 spindles Safety Equipment - Laser scanners, light curtains, pressure mats Material Handling - Automatic material handling system, out feed conveyor, material handling tables Dual Screen - Additional 17″ screen attached to the control allows for flexibility Mist Coolant - For cutting non-ferrous metals Pathfinder System - Part registration system adjusts placement for precision cutting Real Time Tool View - Industrial LED camera mounted under the spindle. C Axis - Allows use of aggregate tooling, for four axis machining capability Table - Aluminum universal grid, integrated pop-up roller balls
