Xtreme 5-Axis CNC Machine

Xtreme 5 Axis Series CNC Machining Center

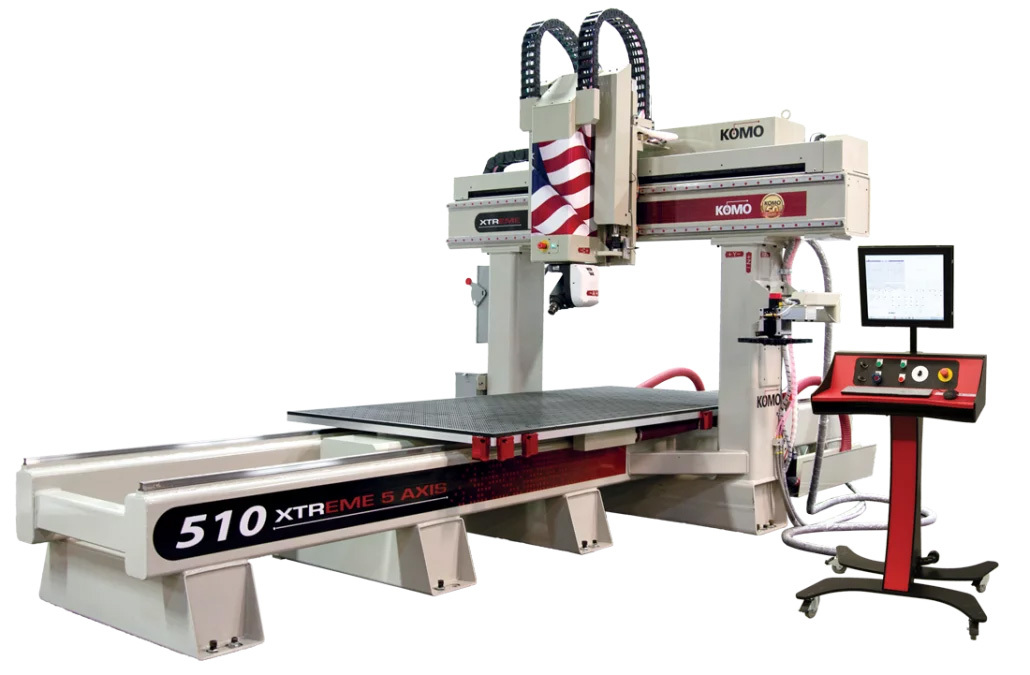

The Xtreme 5 Axis Series of CNC machining centers from KOMO Machine, Inc. has been developed specifically for the customer who requires more machining flexibility and more Z travel than an Xtreme XL. These machines feature a moving table configuration and 24″ of Z travel.

DOWNLOAD THE XTREME 5-AXIS DATA SHEET

Features

Four-pole, 16HP (12kw), 24,000 RPM, HSK 63F, fan-cooled spindle
12 position automatic tool changer with aggregate capability
Air blast for optimal dust/chip evacuation and cooling of the cutting tool
Advanced Fanuc HVI servo system tuned for optimum acceleration and deceleration
Tool touch-off device with automatic tool data uploading
Latest Fanuc controls with integrated PC
Universal grid fixture table available in composite (standard) or aluminum (option)
Pressurized automatic centralized lubrication system
KOMO Production Manager and Machine Monitoring software
19” Color Monitor

Construction

Xtreme 5 Axis Technical Data
Spindle	Quantity…..One (1) Type…..11.7HP (8.7kw), four-pole, liquid cooled RPM…..Up to 20,000, fully programmable Taper…..HSK 63F
Tables	508…..60″ x 96″ (1524mm x 2438mm) 510…..60″ x 120″ (1524mm x 3048mm) 512…..60″ x 144″ (1524mm x 3658mm)
Tool Changer	Max Quantity…12 tools standard. Max 24 tools with a second optional 12 station tool changer. Max Diameter……3.25″ (82mm) positions full; 6.5″ (165mm) adjacent positions empty Max Weight….12 lbs each / 80 lbs total (5.4kg / 36.4kg) Max Length…..5″ (127mm)
Feed Rate/Traverse	X Axis…..3150ipm (80mpm) Y Axis…..2300ipm (58.5mpm) Z Axis…..1200ipm (30.5mpm) Acc/Dec…..130 in/sec² A & C Axes…..74.4°/sec
Axis Travels	508…..110″ (2794mm) x 84″ (2134mm) x 24″ (610mm) 510…..134″ (3404mm) x 84″ (2134mm) x 24″ (610mm). Note: 36″ (914mm) Optional 512…..158″ (4013mm) x 84″ (2134mm) x 24″ (610mm) Note: 36″ (914mm) Optional
Control System	Fanuc Controls with integrated PC and 17″ touch screen display
Options	Tooling Package - Tool holders, collets, bench top tool changing block, wrench Vacuum System - With low vacuum sensing interface Vacuum Pumps - Started via pushbutton on main operator panel, with remote start relay Safety Equipment - Laser scanners, light curtains, pressure mats Material Handling - Material handling tables Dual Screen - Additional 17″ screen attached to the control allows for flexibility Mist Coolant - For cutting non-ferrous metals C Distributor - Rotary distributor allows the C axis to rotate continuously without unwinding Table - Aluminum universal grid, integrated pop-up roller balls, threaded inserts, custom
