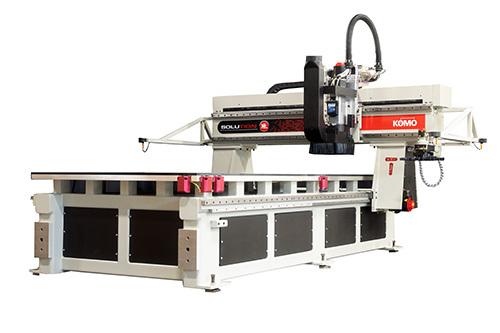

The Solution XL Series of CNC machining centers from Komo Machine, Inc. has been developed for the customer who requires flexibility in the length of their machine. These machines feature a moving gantry configuration with table sizes available up to 110′ (33,000mm) in the X axis.

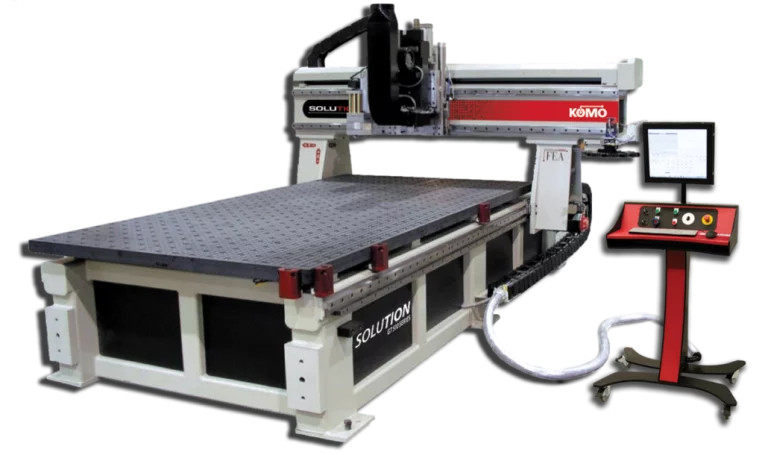

The KOMO Solution router
DOWNLOAD THE SOLUTION XL DATA SHEET

Features

  • Four-pole, 18HP (13.2kw), 24,000 RPM, HSK 63F, fan-cooled spindle
  • 12 position automatic tool changer with aggregate capability
  • Air blast for optimal dust/chip evacuation and cooling of the cutting tool
  • Dual helical rack drive on X/U axes with synchronous axis control
  • Tool touch-off device with automatic tool data uploading
  • Latest Fanuc controls with HVI servo system and integrated PC
  • Universal grid fixture table available in composite (standard) or aluminum (option)
  • Pressurized automatic centralized lubrication system
  • Komo Production Manager with Intelligent Spoil Board Management
  • 17″ touch screen display

Construction

  • FEA “Finite Element Analysis” engineered structure
  • Closed-loop counterbalance system minimizes plant air consumption
Solution XL Series Technical Data
Spindle

Quantity…..1

Type…..18HP (13.2kw), four-pole, fan cooled

RPM…..Up to 24,000, fully programmable

Taper…..HSK 63F
Tables
510…..60″ x 120″ (1524mm x 3048mm)
512…..60″ x 144″ (1524mm x 3658mm)
524…..60″ x 288″ (1524mm x 7316mm)
Other…..Available up to 60″ x 110′ (1524mm x 33,000mm)
Four (4) 1″ (25mm) part location pins
Aggregate-Capable Tool Changer

Max Quantity…12 tools

Max Diameter……3.25″ (82mm) positions full; 6.5″ (165mm) adjacent positions empty

Max Weight….12 lbs each / 80 lbs (total) (5.4kg / 36.4kg)

Max Length…..5″ (127mm)
Feed Rate/Traverse X Axis…..2100ipm (53.5mpm)

Y Axis…..2300ipm (58.5mpm)

Z Axis…..1200ipm (30.5mpm)

Acc/Dec…..95 in/sec²
Axis Travels 510…..131″ (3327mm) x 80″ (2032mm) x 10″ (254mm)

512…..155″ (3937mm) x 80″ (2032mm) x 10″ (254mm)

524…..299″ (7595mm) x 80″ (2032mm) x 10″ (254mm)

Other…..Optional 17.7″ (450mm) Z travel is available
Control System Fanuc controls with integrated PC and 17″ touch screen display
Dust Collection
Interface…..6″ (152mm) diameter (recommended volume 900 cfm)
Vacuum System With low vacuum sensing interface
Options
Tooling Package - Tool holders, collets, bench top tool changing block, wrench
Vacuum Pumps - Started via pushbutton on main operator panel, with remote start relay
Boring Blocks - Available in a variety of configurations, from nine to 25 spindles
Safety Equipment - Laser scanners, light curtains, pressure mats
Material Handling - Automatic material handling system, out feed conveyor, material handling tables
Dual Screen - Additional 17″ screen attached to the control allows for flexibility
Mist Coolant - For cutting non-ferrous metals
C Axis - Allows use of aggregate tooling, for four axis machining capability
!
