Mach III Twin Tale Series CNC Machining Center

The Mach III Twin Table Series of CNC routers from Komo Machine, Inc. has been developed specifically for the customer who requires a premier machine with more flexibility, more options and more Z travel than a Fusion Twin Table. These machines feature moving tables and a tool changer mounted on each spindle, and can be configured with multiple spindles, moulder heads, horizontal spindles etc.

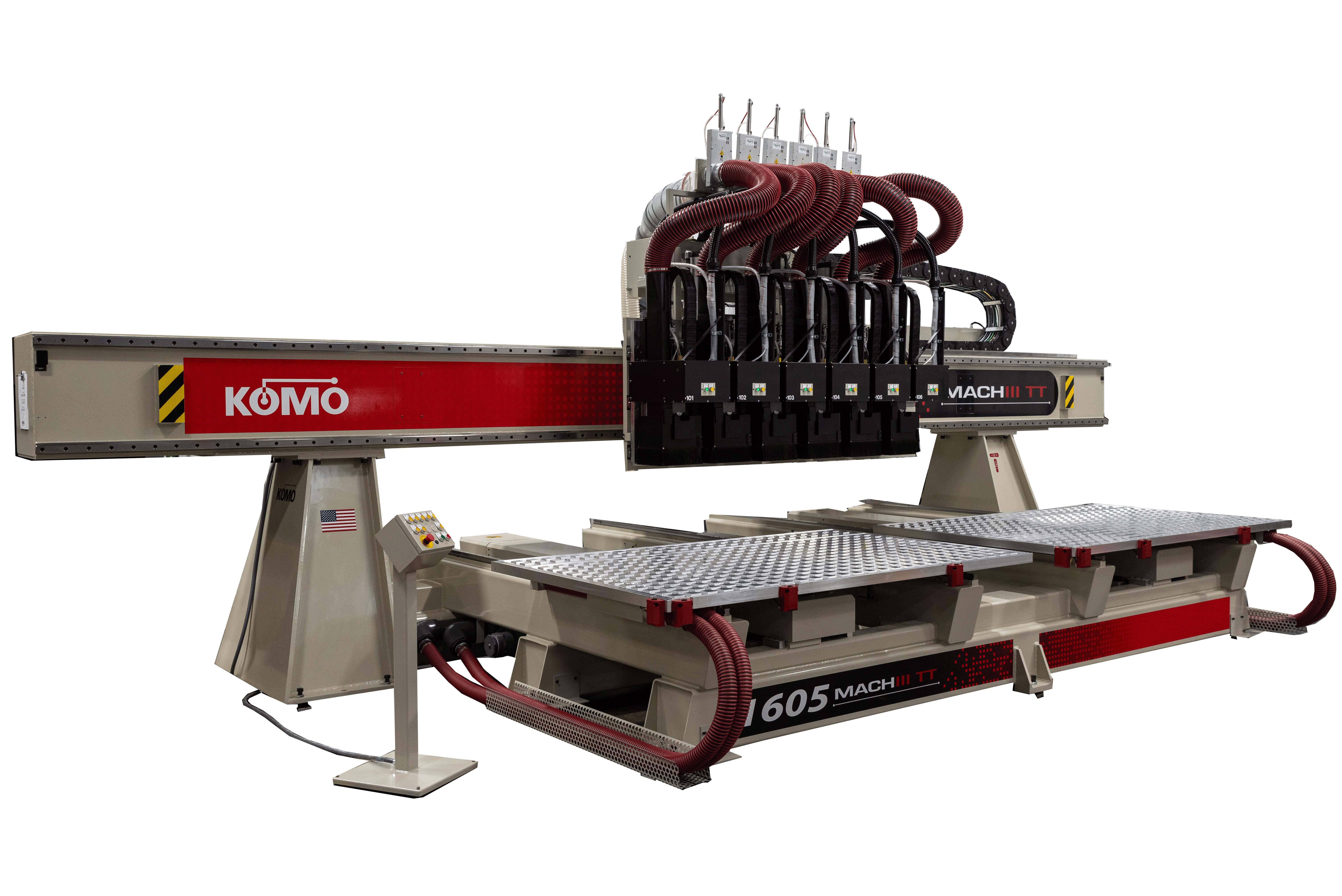

mach iii twin table with six spindles
DOWNLOAD THE MACH III TT DATA SHEET

Mach III TT Features

  • Four-pole, 18HP (13.2kw), 24,000 RPM, HSK 63F, fan-cooled spindle (standard; other spindle options available)
  • 15 position automatic tool changer with aggregate capability (optional additional 15 position tool changer available)
  • Air blast for optimal dust/chip evacuation and cooling of the cutting tool
  • Advanced Fanuc HVI servo system tuned for optimum acceleration and deceleration
  • Tool touch-off device with automatic tool data uploading
  • Latest Fanuc controls with integrated PC
  • Precision machined aluminum table (2″) with options available
  • Pressurized automatic centralized lubrication system
  • Komo Production Manager with Intelligent Spoil Board Management
  • 17″ touch screen display

Mach III TT Construction

  • FEA “Finite Element Analysis” engineered structure
  • Heavy-duty steel fabrication
  • Closed-loop counterbalance system minimizes plant air consumption

Mach III TT Recommended Applications

Mach III Twin Table Technical Data
Spindle

Quantity…..One standard, additional optional Hiteco or HSD spindle

Type…..18HP (13.2kw), four-pole, fan cooled (standard)

RPM…..Up to 24,000, fully programmable

Taper…..HSK 63F
Table
1005TT/1008TT…..(2) 60″ x 60″ (1524mm x 1524mm) / (2) 60″ x 96″ (1524mm x 2438mm)

1010TT/1012TT…..(2) 60″ x 120″ (1524mm x 3048mm) / (2) 60″ x 144″ (1524mm x 3658mm)

1605TT/2005TT…..(2) 96″ x 60″ (2438mm x 1524mm) / (2) 120″ x 60″ (3048mm x 1524mm)

Four (4) 1″ (25mm) part location pins per table
Aggregate-Capable Tool Changer

Max Quantity…15 tools (per spindle) standard. Max tool capacity can be up to (6) 8 station tool changer heads (48 tools total), or (4) 15 station tool changer heads (60 tools total), configurable based on customer needs

Max Diameter……3.25″ (82mm) positions full; 6.5″ (165mm) adjacent positions empty

Max Weight….12 lbs each / 96 lbs total (5.4kg / 43.5kg)

Max Length…..5″ (127mm)
Feed Rate/Traverse X Axis…..3150ipm (80mpm)

Y Axis…..3150ipm (80mpm)

Z Axis…..600ipm (15.2mpm)

Acc/Dec…..83 in/sec²
Axis Travels 1005TT…..162″ (4114mm) x 80″ (2032mm) x 15″ (381mm)

1008/1010/1012TT…..162″ (4114mm) x 164″ (4166mm) x 15″ (381mm)

1605TT/2005TT…..258″ (6553mm) x 78″ (1982mm) x 15″ (381mm)
Control System FANUC Controls with integrated PC and 17″ touch screen display
Dust Collection
Interface…..6″ (152mm) dia (1 spindle) recommended volume 900 cfm per spindle
Vacuum System With low vacuum sensing interface
Options
Tooling Package - Tool holders, collets, bench top tool changing block, wrench
Vacuum Pumps - Started via pushbutton on main operator panel, with remote start relay
Boring Blocks - Available in a variety of configurations, from nine to 25 spindles
Safety Equipment - Laser scanners, light curtains, pressure mats
Dual Screen - Additional 17″ screen attached to the control allows for flexibility
Metal Cutting - Mist coolant, dust/chip enclosure, pressure foot for cutting non-ferrous metals
C Axis - Allows use of aggregate tooling, for four axis machining capability
Table - Aluminum universal grid, integrated pop-up roller balls
Spindles. - Multiple spindles, programmable head spacing and/or shroud height, head locks
!
