KOMO Mach III CNC Machine

Mach III Series CNC Machining Center

The Mach III Series of CNC routers from Komo Machine, Inc. has been developed specifically for the customer who requires a premier machine with more flexibility, more options and more Z travel than a Fusion XL. These machines feature a moving table configuration and a tool changer mounted on each spindle.

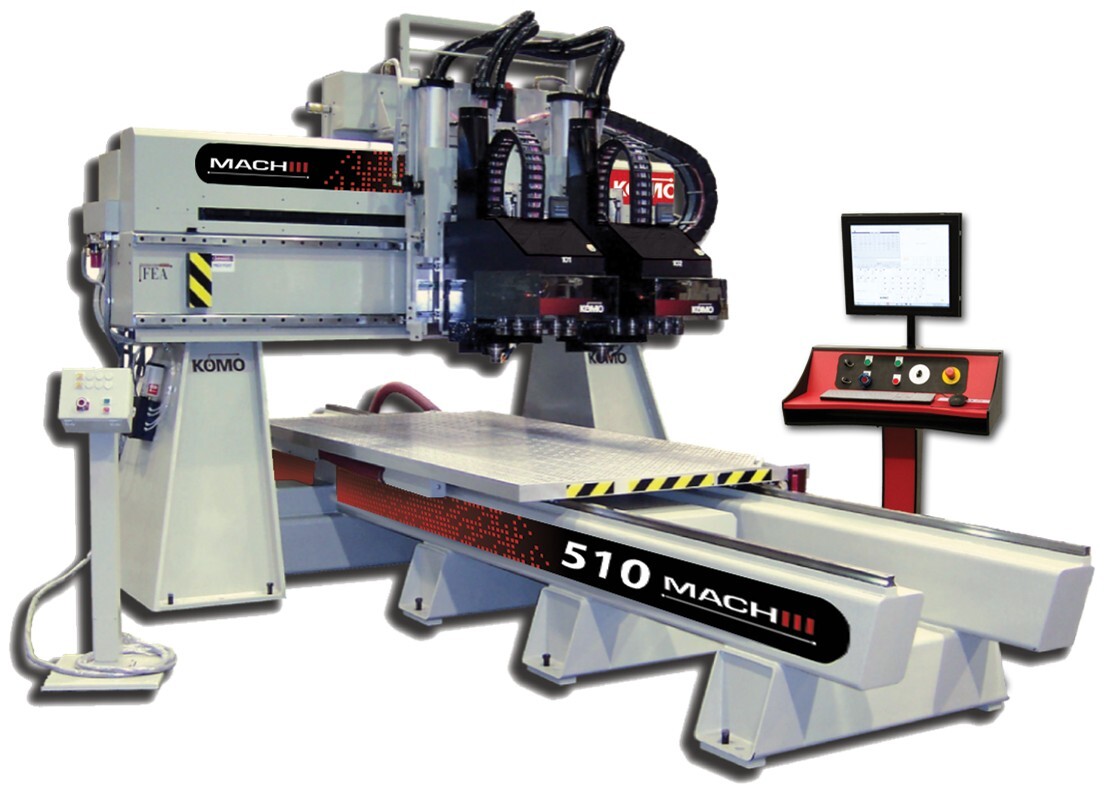

The Mach III CNC machine in KOMO's branded colors and logos

DOWNLOAD THE MACH III DATA SHEET

Features

Four-pole, 18HP (13.2kw), 24,000 RPM, HSK 63F, fan-cooled spindle (standard; other spindle options available)
15 position automatic tool changer with aggregate capability (optional additional 15 position tool changer available)
Air blast for optimal dust/chip evacuation and cooling of the cutting tool
Advanced Fanuc HVI servo system tuned for optimum acceleration and deceleration
Tool touch-off device with automatic tool data uploading
Latest Fanuc controls with integrated PC
Precision machined aluminum table (2″) with options available
Pressurized automatic centralized lubrication system
Komo Production Manager with Intelligent Spoil Board Management
17″ touch screen display

Construction

Mach III Series Technical Data
Spindle	Quantity…..One standard, additional optional Type…..18HP (13.2kw), four-pole, fan cooled (standard) RPM…..Up to 24,000, fully programmable Taper…..HSK 63F
Tables	508…..60″ x 96″ (1524mm x 2438mm) 510…..60″ x 120″ (1524mm x 3048mm) 512…..60″ x 144″ (1524mm x 3658mm) Tables are also available 72″ wide (1829mm)
Aggregate-Capable Tool Changer	Max Quantity…15 tools standard. Max capacity is 30 tools with an optional second 15 station tool changer on the head. Max Diameter……3.25″ (82mm) positions full; 6.5″ (165mm) adjacent positions empty Max Weight….12 lbs each / 96 lbs total (5.4kg / 43.5kg) Max Length…..5″ (127mm)
Feed Rate/Traverse	X Axis…..3150ipm (80mpm) Y Axis…..3150ipm (80mpm) Z Axis…..600ipm (15.2mpm) Acc/Dec…..83 in/sec²
Axis Travels	508…..116″ (2946mm) x 84″ (2134mm) x 15″ (381mm) 510…..140″ (3556mm) x 84″ (2134mm) x 15″ (381mm) 512…..164″ (4166mm) x 84″ (2134mm) x 15″ (381mm)
Control System	Fanuc controls with integrated PC and 17″ touch screen display
Dust Collection	Interface…..9″ (229mm) dia (recommended volume 900 cfm per spindle)
Vacuum System	With low vacuum sensing interface
Options	Tooling Package - Tool holders, collets, bench top tool changing block, wrench Vacuum Pumps - Started via pushbutton on main operator panel, with remote start relay Boring Blocks - Available in a variety of configurations, from nine to 25 spindles Safety Equipment - Laser scanners, light curtains, pressure mats Material Handling - Automatic material handling system, out feed conveyor, material handling tables Dual Screen - Additional 17″ screen attached to the control allows for flexibility Metal Cuttinga> - Mist coolant, dust/chip enclosure, pressure foot for cutting non-ferrous metals C Axis - Allows use of aggregate tooling, for four axis machining capability Table - Aluminum universal grid, integrated pop-up roller balls, roller hold down Spindles - Multiple spindles, programmable head spacing and/or shroud height, head locks
