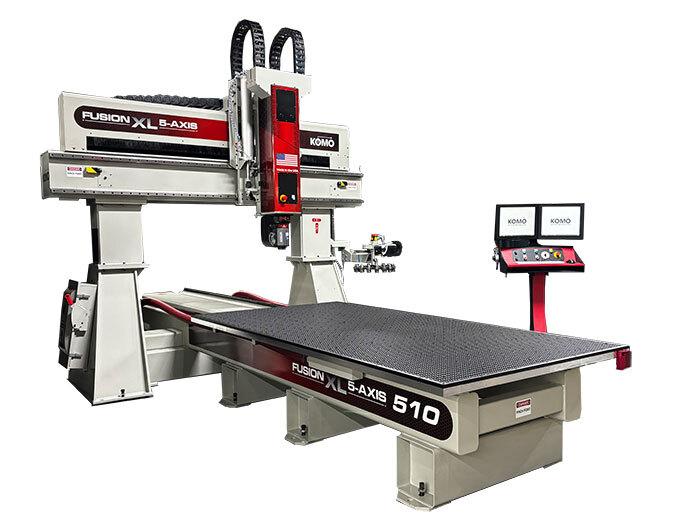

Fusion XL 5-Axis Series CNC Machining Center

The Fusion XL 5-Axis machine is a lighter duty machine than the standard Fusion 5-Axis. It bridges the gap between the Xtreme 5-axis and the Fusion 5-axis to provide accurace cutting of wood, plastics, composits and aluminum.

Fusion XL 5-Axis Features

  • Four-pole, 18HP (13.5kw), 24,000 RPM, HSK 63F, liquid-cooled spindle (standard; other spindle options available)
  • 15 position automatic tool changer (optional additional 15 position tool changer available)
  • Advanced Fanuc HVI servo system tuned for optimum acceleration and deceleration
  • Latest Fanuc controls with integrated PC
  • Universal grid fixture table available in composite (standard) or aluminum (option)
  • Pressurized automatic centralized lubrication system
  • Komo Production Manager
  • 17″ touch screen display

Fusion XL 5-Axis Construction

  • FEA “Finite Element Analysis” engineered structure
  • Heavy-duty steel fabrication
  • Closed-loop counterbalance system minimizes plant air consumption

Fusion XL 5-Axis Recommended Applications

Fusion XL 5 Axis
Technical Data
Spindle

Quantity…..One (1) standard Hiteco or HSD spindle

Type…..18.10HP (13.5kw), four-pole, liquid cooled (standard)

RPM…..Up to 24,000, fully programmable

Taper…..HSK 63F
Tables
508…..60″ x 96″ (1524mm x 2438mm)
510…..60″ x 120″ (1524mm x 3048mm)
512…..60″ x 144″(1524mm x 3658mm)
Tool Changer

Max Quantity…15 tools standard. Max tool capacity is 30 with an optional second 15 station tool changer.

Max Diameter……3.25″ (82mm) positions full; 6.5″ (165mm) adjacent positions empty

Max Weight….12 lbs each / 96 lbs total (5.4kg / 43.5kg)

Max Length…..11″ (280mm)
Feed Rate/Traverse X Axis…..3150ipm (80mpm)

Y Axis…..3150ipm (80mpm)

Z Axis…..735ipm (18.7mpm)

A & C Axes…..82.5 degrees/sec

Acc/Dec…..205 in/sec²
Axis Travels 508…..116″ (2965mm) x 86″ (2184mm) x 11″ (279mm)

510…..144″ (3658mm) x 86″ (2184mm) x 11″ (279mm)

512…..168″ (4267mm) x 86″ (2184mm) x 11″ (279mm)

A Axis…..+/-120 degrees

C Axis…..+/-320 degrees

Control System FANUC Controls with integrated PC and 17″ touch screen display
Options
Tooling Package…..Tool holders, collets, bench top tool changing block, wrench
Vacuum System…..With low vacuum sensing interface
Vacuum Pumps…..Started via pushbutton on main operator panel, with remote start relay
A & C Encoders…..Rotary encoders increase the repeatability tolerance of the A and C axes
A & C Brakes…..Hydraulic brakes add rigidity to indexing operations
C Distributor…..Rotary distributor allows the C axis to rotate continuously without unwinding
Part Labeling…..Print labels directly onto parts prior to machining
Safety Equipment…..Laser scanners, light curtains, pressure mats
Dual Screen…..Additional 17″ screen attached to the control allows for flexibility
Metal Cutting…..mist coolant, dust/chip enclosure for cutting non-ferrous metals
Table…..Aluminum universal grid, threaded inserts, custom options
!
