Fusion XL Series CNC Machining Center

The Fusion XL Series of CNC routers from Komo Machine, Inc. has been developed specifically for the customer who requires a machine with more flexibility, a larger tool changer and more Z travel than an Xtreme XL. These machines feature a moving table configuration and a spindle-mounted tool changer.

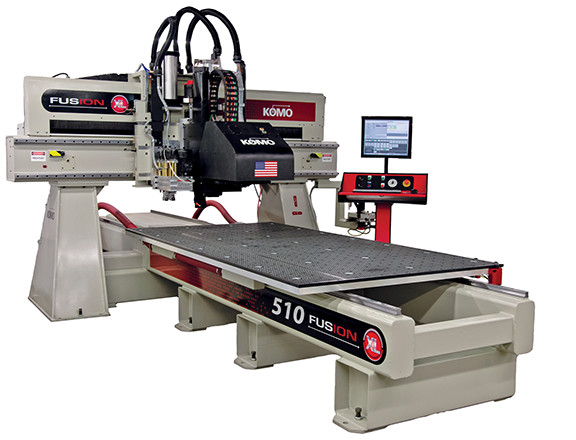

The KOMO Fusion XL 510 router
DOWNLOAD MORE INFORMATION

Features

  • Four-pole, 18HP (13.2kw), 24,000 RPM, HSK 63F, fan-cooled spindle (standard; other spindle options available)
  • 15 position automatic tool changer with aggregate capability (optional additional 15 position tool changer available)
  • Air blast for optimal dust/chip evacuation and cooling of the cutting tool
  • Advanced Fanuc HVI servo system tuned for optimum acceleration and deceleration
  • Tool touch-off device with automatic tool data uploading
  • Latest Fanuc controls with integrated PC
  • Universal grid fixture table available in composite (standard) or aluminum (option)
  • Pressurized automatic centralized lubrication system
  • Komo Production Manager with Intelligent Spoil Board Management
  • 17″ touch screen display

Construction

  • FEA “Finite Element Analysis” engineered structure
  • Heavy-duty steel fabrication
  • Closed-loop counterbalance system minimizes plant air consumption
Fusion XL Series Technical Data
Spindle

Quantity…..1 spindle is standard. 2nd spindle optional.

Type…..18HP (13.2kw), four-pole, fan cooled (standard)

RPM…..Up to 24,000, fully programmable

Taper…..HSK 63F

Tables
508…..60″ x 96″ (1524mm x 2438mm)
510…..60″ x 120″ (1524mm x 3048mm)
512…..60″ x 144″ (1524mm x 3658mm)
Four (4) 1″ (25mm) part location pins
Aggregate-Capable Tool Changer

Max Quantity…15 tools standard. Max tool capacity is 45 with an optional second head and optional side auxiliary tool changer.

Max Diameter……3.25″ (82mm) positions full; 6.5″ (165mm) adjacent positions empty

Max Weight….12 lbs each / 96 lbs total (5.4kg / 43.5kg)

Max Length…..5″ (127mm)
Feed Rate/Traverse X Axis…..3150ipm (80mpm)

Y Axis…..3150ipm (80mpm)

Z Axis…..900ipm (22.7mpm)

Acc/Dec…..205 in/sec²

Axis Travels 508…..111″ (2820mm) x 86″ (2184mm) x 11″ (279mm)

510…..135″ (3429mm) x 86″ (2184mm) x 11″ (279mm)

512…..159″ (4038mm) x 86″ (2184mm) x 11″ (279mm)

Control System Fanuc controls with integrated PC and 17″ touch screen display
Dust Collection
Interface…..6″ (152mm) diameter (recommended volume 900 cfm)
Vacuum System With low vacuum sensing interface
Options
Tooling Package - Tool holders, collets, bench top tool changing block, wrench
Vacuum Pumps - Started via pushbutton on main operator panel, with remote start relay
Boring Blocks - Available in a variety of configurations, from nine to 25 spindles
Safety Equipment - Laser scanners, light curtains, pressure mats
Material Handling - Automatic material handling system, out feed conveyor, material handling tables
Dual Screen - Additional 17″ screen attached to the control allows for flexibility
Mist Coolant - For cutting non-ferrous metals
Pathfinder System - Part registration system adjusts placement for precision cutting
Real Time Tool View - Industrial LED camera mounted under the spindle.
C Axis - Allows use of aggregate tooling, for four axis machining capability
Metal Cutting - Mist coolant, dust/chip enclosure for cutting non-ferrous metals
Table - Aluminum universal grid, integrated pop-up roller balls, roller hold down
Spindles - Multiple spindles, programmable head spacing and/or shroud height, head locks
!
